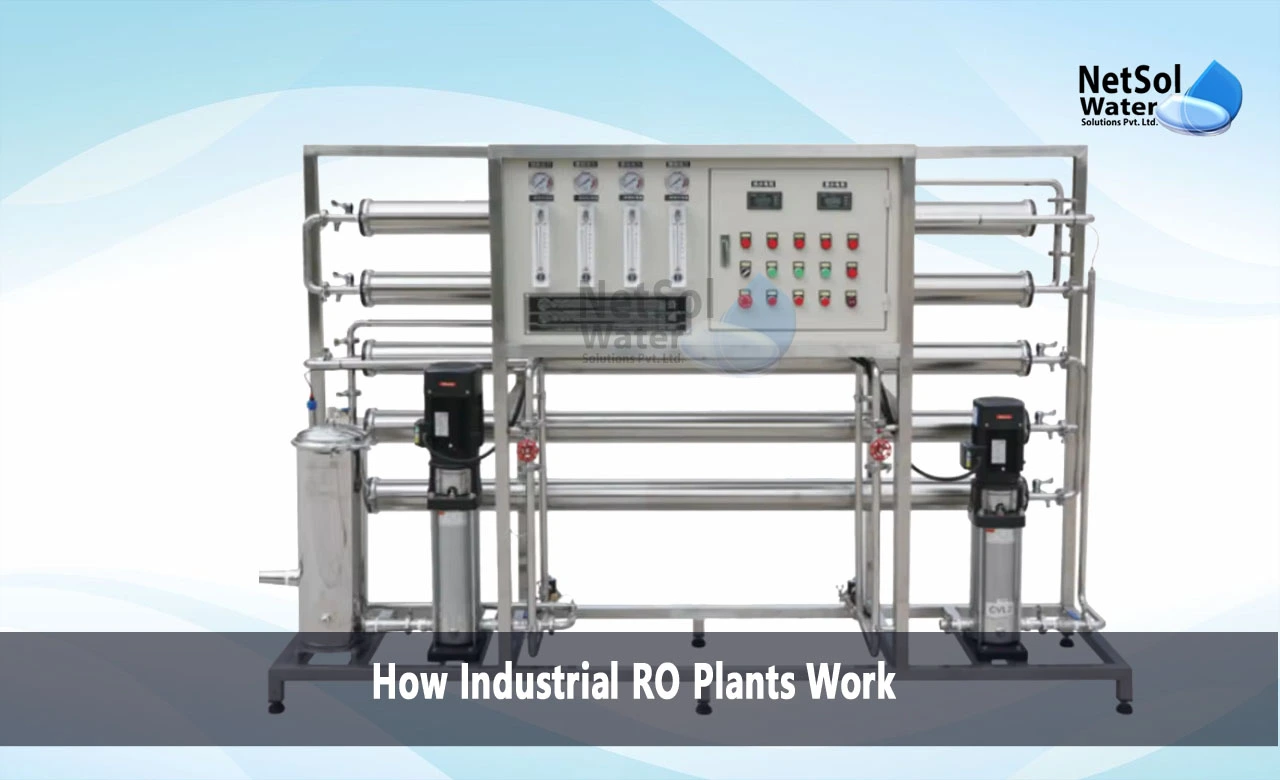

How Industrial RO Plants Work?
As freshwater supplies decline and environmental regulations tighten around water use, many industrial facilities are implementing advanced treatment solutions like reverse osmosis (RO). An industrial RO plant enables a facility to utilise alternative, lower-quality water sources like brackish groundwater, treated municipal effluent, or even seawater for their operations. Through membrane separation technology, RO plants purify these challenging feed waters to produce high-quality processes and reuse water streams.
But how exactly do industrial RO plants work to generate a constant supply of purified water from contaminated sources?
We'll take a closer look at the core reverse osmosis process and technology, as well as all the supporting equipment and treatment steps involved in a comprehensive industrial RO plant design.
The Reverse Osmosis Process
At its core, reverse osmosis controls the natural osmotic pressure difference between concentrated and dilute solution streams across a semi-permeable membrane. In an RO membrane element, feed water is forced against the membrane surface using high-pressure pumps that exceed the osmotic pressure. This driving force allows water molecules to pass through the microscopic pores in the membrane while rejecting the passage of most dissolved salts, particles, organics and other contaminants.
The RO membranes used in industrial RO plants are arranged in a spiral-wound configuration, consisting of multiple membrane envelopes wrapped around a central perforated collection tube. These spiral-wound elements are contained within fibreglass-reinforced pressure vessels designed to withstand the typical 600-1000 psi feed pressures. As the feed water travels along the membranes, pure permeate collects in the central tube while the concentrated reject stream exits separately.
Industrial systems incorporate hundreds or thousands of these membrane elements arranged in series for staged processing and in parallel configurations to achieve the desired total permeate production capacity. Factors like membrane type, pH, temperature, and fouling all impact the overall system recovery rate and permeate quality.
Supporting Processes and Equipment
While the core RO membrane separation is a relatively simple process conceptually, an industrial RO plant incorporates extensive supporting processes and equipment to operate effectively with challenging feed waters. Key components include:
Intake/Feed Screening – Wells, surface water intakes or piped feeds bring raw water into the plant and are screened for debris removal.
Pretreatment – Multi-stage processes like filtration, clarification, chlorination, ion exchange, and more thoroughly remove suspended solids, hardness, metals, microbes and organics to protect downstream RO membranes.
Cartridge Filtration – Final high-efficiency cartridge filters remove any remaining particles larger than 1 micron.
Chemical Systems – Dosing systems carefully inject antiscalants, pH adjustment, chlorine, dechlorination and cleaning chemicals to maintain optimal RO performance.
High-Pressure Pumps – Positive displacement pumps or multi-stage centrifugal pumps pressurize the pretreated feed up to 1000 psi to drive RO separation.
Energy Recovery Devices – Turbine or work exchanger units recover energy from the high-pressure concentrate stream to reduce pumping power costs.
Membrane Array – Hundreds of spiral-wound membrane elements housed within fiberglass reinforced pressure vessels in optimized array configurations.
Clean-In-Place (CIP) Systems – Equipment for heated membrane cleaning solutions, recirculation pumps and piping to periodically remove fouling.
Residuals Management – Concentrate disposal facilities like evaporation ponds, deep injection wells or discharge outfalls with pumping and piping.
Storage Tanks – Atmospheric and ground storage tanks for permeated water, CIP solutions, and other process tankage needs.
Comprehensive instrumentation, process piping, valves, automated control systems, and electrical and mechanical systems all integrate each area of the plant together. The key is carefully designing and optimising the full component details and process flow to match the feed water challenges and throughput requirements.
Industrial System Optimization
Due to the high capital and operating costs of industrial RO systems, design optimisation is critical to achieve consistent performance and minimise expenses. Some key optimisation techniques include:
1- Membrane Element Selection – Using membrane types tuned to the raw water characteristics and contaminants of concern.
2- System Configuration – Evaluating single-pass versus double-pass RO systems or staging options for maximum recovery.
3- Energy Recovery – Incorporation of energy recovery turbines or work exchangers based on system pressure, flow rates and efficiency targets.
4- Hybrid Treatment – Using RO along with complementary technologies like ion exchange, electrodialysis reversal or ultrafiltration.
5- Advanced Pretreatment – Implementation of membrane pretreatment like ultrafiltration or microfiltration for stringent fouling control.
6- Automatic Controls – Comprehensive monitoring, control and data acquisition systems enhance operation and optimisation.
An extensive evaluation is performed using water analysis, membrane modelling software, CAD layouts, and design experience to optimise the core RO process along with pretreatment, pumping, residual management and all other ancillary processes. Capital costs are balanced against factors like membrane replacement, chemical usage, energy consumption, labour and residual disposal over the life cycle to identify the most cost-effective industrial RO plant solution.
Conclusion
While the core reverse osmosis membrane separation process is relatively straightforward, a comprehensive industrial RO plant incorporates extensive supporting processes and equipment. Feed water screening, extensive pretreatment, chemical systems, high-pressure pumping, residual management and more all integrate together to generate a consistent supply of purified process water.
By carefully designing, sizing and integrating each system component based on the facility's raw water quality, membrane selection, throughput needs and discharge requirements, industrial RO plants optimise costs and performance. With the right design approach, industrial manufacturing facilities can leverage membrane separation to access alternative water sources and reliably meet their process demands for years to come.
