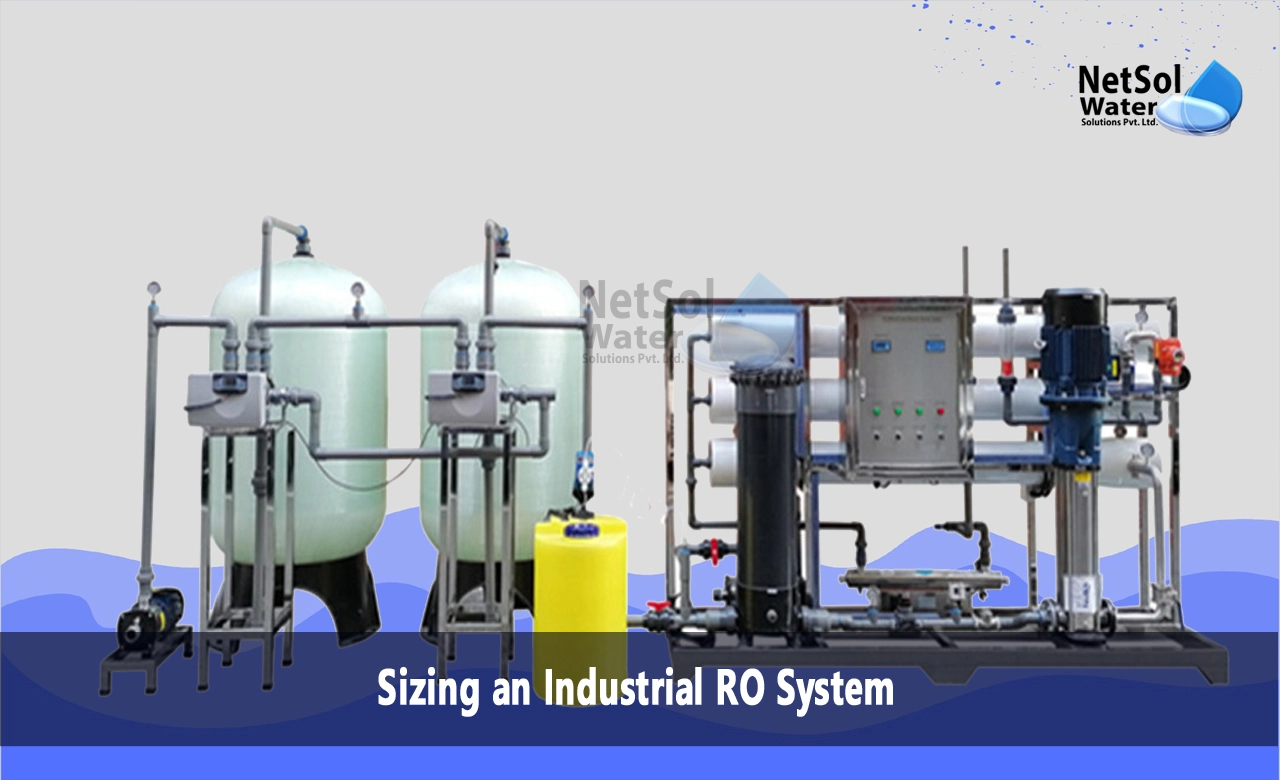

How do You Size an Industrial RO System?
Properly sizing a reverse osmosis (RO) system for an industrial facility ensures adequate pure water production while avoiding oversizing that wastes capital and operating costs. Several key factors drive RO system sizing calculations to match treated water demand within the constraints of available feed water supply and quality.
Determining RO permeate flow rate requirements sets the baseline production target. However, accounting for factors like membrane rejection rates, feed pressure requirements, recovery ratios, and pretreatment impacts refine the overall system capacity and configuration needed. Safety factors cover fouling and future growth.
In this post, we'll walk through the essential parameters involved in comprehensively sizing an industrial RO plants specification, from production flow rates through individual membrane modules and full-scale plant designs. Careful analysis upfront prevents operational problems later.
Establishing Permeate Production Requirements
The first step in any RO system sizing is quantifying the facility's treated water demand over daily and annual timelines. This establishes the target production rate and drives all subsequent design calculations for capacity.
Industrial facilities track hourly production schedules fairly consistently, allowing daily and weekly pure water consumption profiles. However, seasonal demand swings must also be accounted for. Enough excess production capacity gets built in to meet peak requirements reliably.
For new construction, estimating consumption from comparable facilities provides a solid starting point. Adding a 10-15% growth allowance future-proofs against missed projections.
The application also determines if continuous or batch-wise treatment suffices. Continuous production allows a constant smaller system design. While batch periods require a larger surge capacity.
Finally, any seeded plans for production expansion phases down the road with greater treated water needs may drive oversizing membrane modules from the outset as a cost-optimization.
Membrane Element and Array Design
With permeate flow rate requirements quantified, RO system process engineers then consider raw feed water characteristics to select and size membrane elements while meeting recovery ratio targets.
Common industrial RO membrane types include cellulose triacetate (CTA), cellulose acetate (CA), polyamide (PA) thin-film composites, and more specialised chemistries for hot/caustic solutions. Their pore sizes and rejection rates versus various feedwater species differ.
Higher total dissolved solids (TDS) levels in feedwaters decrease driving pressures and permeate recovery ratios, resulting in larger elements and element quantities. Common recoveries range from 50-85% of feed flow.Along with permeate production, individual elements also get sized to prevent scaling, fouling, or precipitation within pressure vessels despite concentrated brine accumulation. Adjusting pH and adding anti-scalants can improve recovery levels.Once individual element sizing is set, full-scale plant designs are arranged into multi-stage arrays tailored to achieve target purities and flow rates. Energy recovery devices, pumps, and pretreatment systems get proportioned accordingly.
Conclusion
Thoroughly calculating required permeate flow rates and running realistic simulations with quality feed water data prevents surprises like over/undersizing RO systems. Sloppy estimations often come back to haunt operations through production shortfalls or excessive operating costs.While spreadsheet models assist in working through all the granular calculations, experienced process engineers ultimately integrate target rates into tailored designs, always balancing tradeoffs in capital/operating costs, recovery efficiencies, pretreatment needs, operating pressures, and flexible turndown.
However, that upfront diligence pays dividends by ensuring reliable, efficient pure water production from industrial RO systems lasting for many years before requiring upgrades. Responsible facility managers must size systems robustly based on sound calculations and water quality characterisations - absolutely critical for capital-intensive RO installations.
